6 Cavity Hot Ruuner PET Preform Mould
  • Air Pro6 Cavity Hot Ruuner PET Preform Mould

6 Cavity Hot Ruuner PET Preform Mould

6 Cavity Hot Ruuner PET Preform Mould made in China can be bought with low price from Huangyan Daelong Mold, which is a professional high quality products manufacturers and factory in China. We provide customized products service. If you want quotation, you can ask us by leaving a message. We will get back to you as soon as possible.

Send Inquiry

Product Description

6 Cavity Hot Ruuner PET Preform Mould, Huangyan Daelong Mold is a professional China Cap mould Manufacturers and China Cap mould suppliers. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.

1. Product Introduction

6-cavity Hot -ruuner PET Preform Mold cavity use : Germany 2316 with HRC 42-45
Mould core: Germany 2316 with HRC 45-48
Mould neck : Germany 2316 with HRC 45-50
Valve Pin : SKD51 from Japan with HRC 58-60
Hot runner nozzle: America Beryllium copper with HRC 37
Mould manifold plate: H13 from America with HRC 35-38
Mould other plate: P20

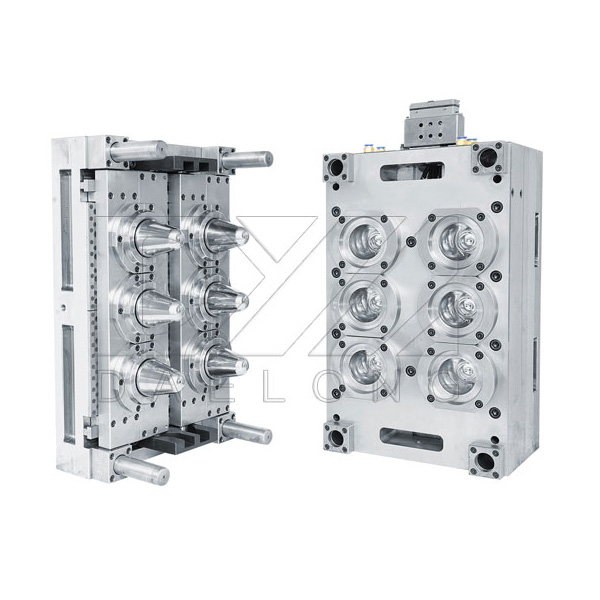

Product Details:6-cavity Hot -ruuner PET Preform Mold


2.Product Parameter

1.Mold platen steel: P20 Tool steel HRC27-32.

2.Cavity, core & neck rings steel: Germany 2316 with HRC 42-45, high grade with hard treatment up to HRC 50°-54°

3.Interchangeable parts for every cavity.

4.PC-VG Series Valve Grate Hot Runner System.

5.Machine tolerance standards 0.005mm-0.003mm.

6.90% of mold parts interchangeable with injection mold machines.

7.Guaranteed preform wall thickness concentricity:±0.0075mm(L=100mm).

8.Optimized preform design ensures dynamic bottle blowing success.


Product packaging and transportation:

The outer packing with wooden cases by sea transportation.


After-sales service of products:

Our technician can be the buyer’s factory to install and run the mould. But the buyer should bear all the cost for the technician’s trip(include the air ticket, the cost of the accommodation and the salary)


Delivery details:

THE DATE OF DELIEVERY: 35-45 DAYS AFTER GETTING THE DEPOSIT.

THE PORT OF DELIEVERY: NINGBO,CHINA
